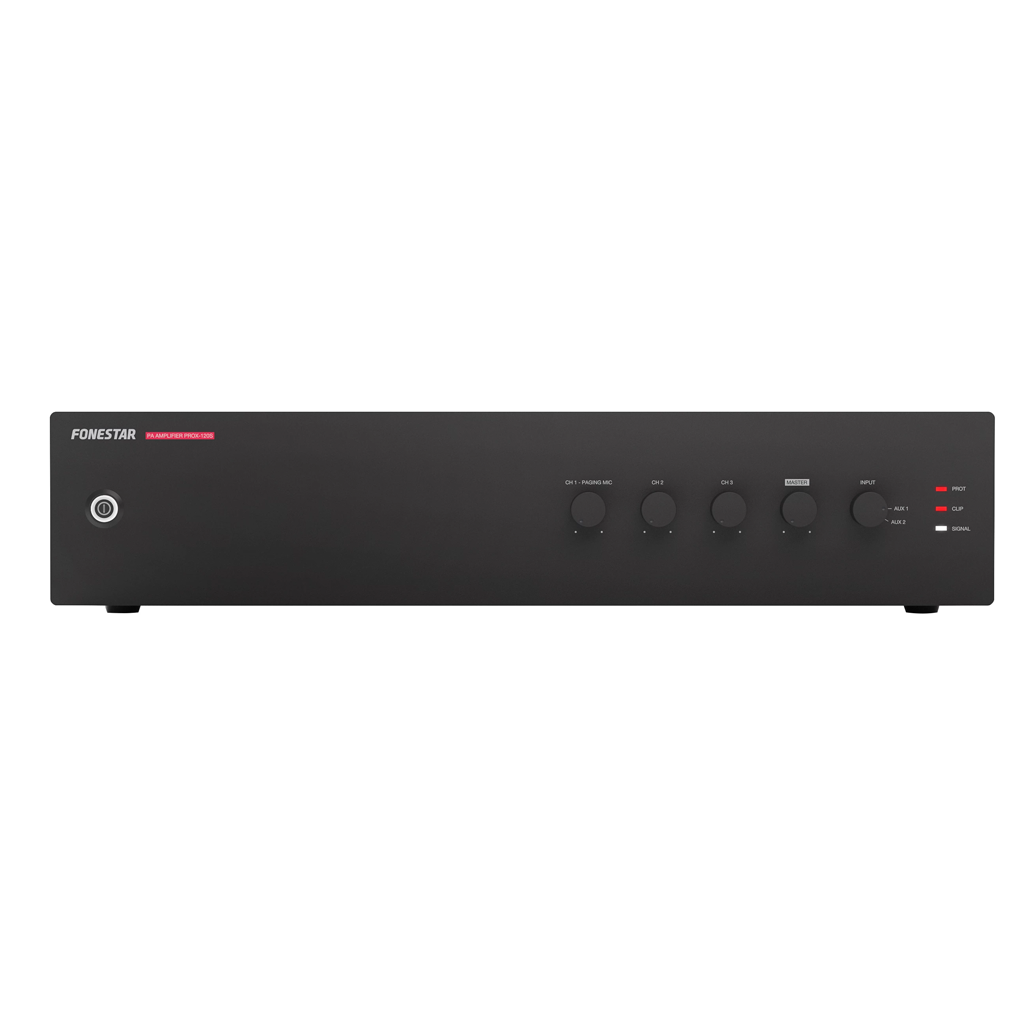

Amply Fonestar 120W RSM PROX-120S
Amply Fonestar 120W RSM PROX-120S
Couldn't load pickup availability
| FEATURES: | PA Amplifier Microphone inputs with mix, gain and priority level control. Input priorities by signal level. Tone controls. 100 V and 4 Ω outputs. |
| POWER: | 120 W RMS |
| RESPONSE: | 40-20,000 Hz (-10 dB) |
| DISTORTION: | THD+N: < 1% @ 1 kHz |
| S/N RATIO: | >77 dB |
| PROTECTIONS: | Overcurrent, DC and short-circuit at the output |
| INPUTS: | CH 1 balanced mic/line with 48V Phantom, Combo connector (XLR + 6.3mm) and euroblock CH 2 and 3 mic/line balanced with 48V Phantom. Euroblock connector Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω Line signal level: 250 mV RMS (-12 dBV) / 100k Ω 2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω 1 emergency. Euroblock connector. Signal level loudspeaker line 100 V 1 Mute (Emergency Priority) by contact closure. Euroblock connector |
| OUTPUTS: | 1 line. 2 x RCA connector. 1.25 V RMS (+2 dBV) signal level 100 V or 4 Ω speaker output. Connector screw terminals |
| IMPEDANCE: | 4 Ω and 100 V line (83 Ω) |
| FUNCTIONS: | Input priority (Voice over VOX inputs): 100V Emergency input with highest priority, attenuates all other inputs. Mute by contact closure, attenuates all inputs except the 100V Emergency input. Channel 1 with priority over all other inputs, level selectable. Channel 2 and 3 with priority over auxiliary inputs, level selectable. Other functions: Power on, protection, signal peak and output signal indicators. Temperature-controlled cooling by forced ventilation |
| CONTROLS: | Microphone volume Mic/line/phantom selector Master volume Aux input selector Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz) Microphone gain Priority activation signal level (VOX) |
| OPERATING TEMPERATURE: | Operation: 0º ~ 40ºC |
| MAXIMUM HUMIDITY: | 95% |
| POWER SUPPLY: | 230/115 V AC 50-60 Hz, 320 W Fuse AC 230 V 3.15 A / 115 V 6 A |
| DIMENSIONS: | 433 x 89 x 360 mm depth. 2 U 19” rack |
| WEIGHT: | 9.5 kg |
| ACCESSORIES: | Power cable Rack mounts |
