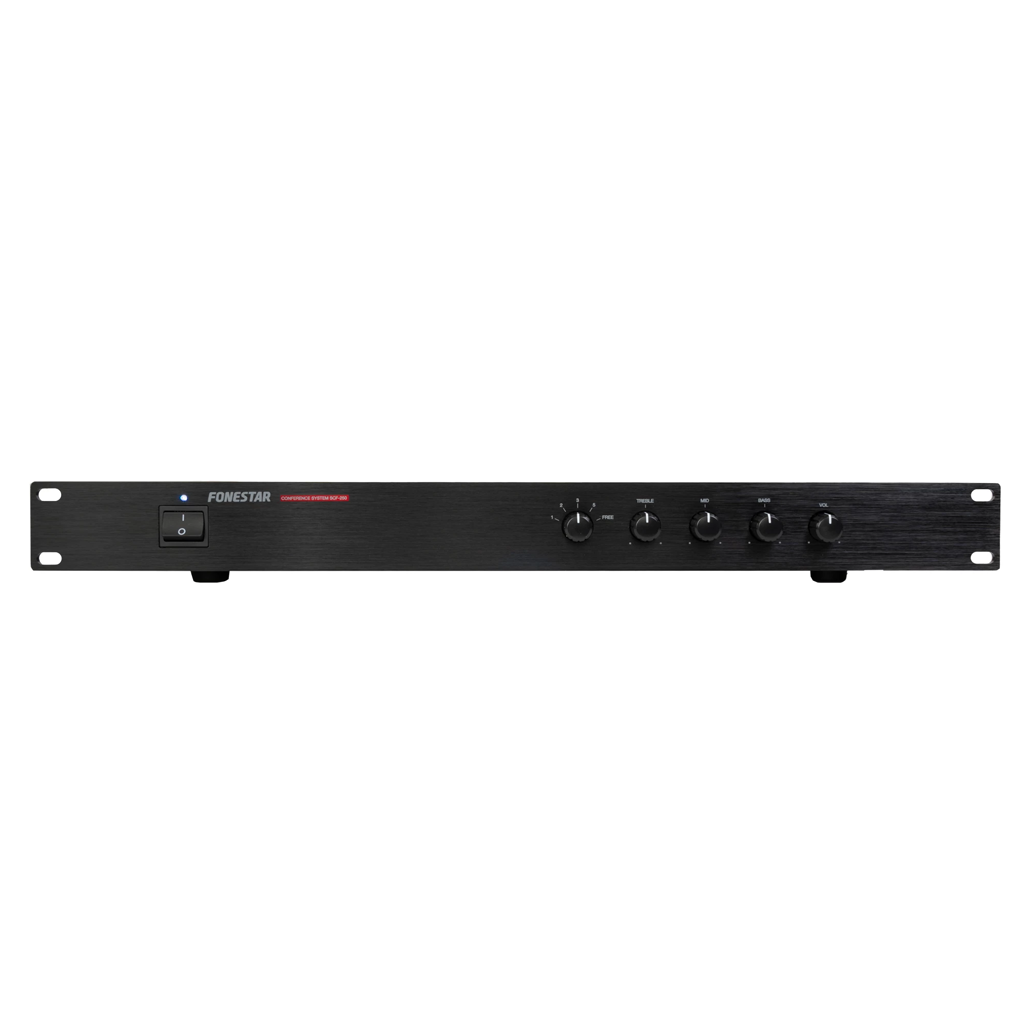

Khối điều khiển trung tâm Fonestar SCF-250
Khối điều khiển trung tâm Fonestar SCF-250
Couldn't load pickup availability
| FEATURES: | Control unit for system power supply. Telephone connection input. Allows connection of up to 64 microphones. Maximum number of microphones in use selector. Built in compliance with IEC 60914 Conference Systems and IEC 61603-7 Transmission Systems standards. |
| RESPONSE: | 20-18,000 Hz |
| CONTROLS: | General volume Bass, mid and treble control Number of microphones operating selector |
| INDICATORS: | On/off |
| INPUTS: | 1 telephone switchboard extension, RCA 4 groups of microphones, female DIN 8 for system interconnection |
| OUTPUTS: | 1 extension, DIN 8 1 line, XLR and 2 x RCA 1 telephone switchboard extension, RCA |
| POWER SUPPLY: | 230/115 V AC, 100 W |
| DIMENSIONS: | 482 x 44 x 353 mm depth. 1 U 19" rack |
| WEIGHT: | 5 kg |
| ACCESSORIES: | 1 x 13 m extension cable to interconnect male DIN 8 and female DIN 8 microphones 2 x 1.6 m audio cables, RCA to 6.3 mm mono jack 1 x 2 m audio cable, XLR 1 male DIN 8 terminal connector |
| OPTIONAL: | 560789B: Custom extension cable. PLEASE INQUIRE |
