Fonestar

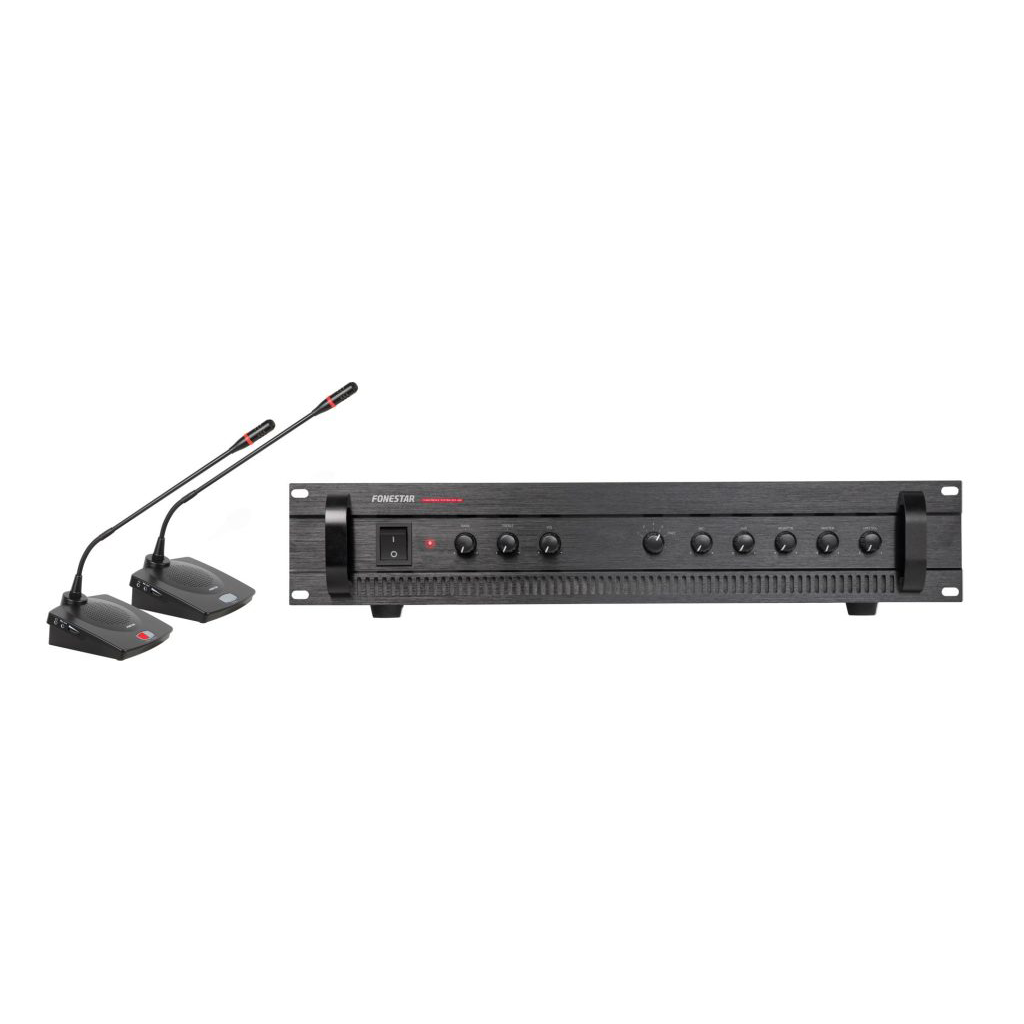

Khối điều khiển trung tâm Fonestar SCF-550
Khối điều khiển trung tâm Fonestar SCF-550
Couldn't load pickup availability
| FEATURES: | Conference system control unit. Control of the number of active microphones: 1, 2, 3, 5 or unlimited. Allows for the connection of up to 64 microphones (extendable up to 250, PLEASE INQUIRE). Equipped with an amplifier. The system offers great versatility with a variety of inputs and outputs. Easy and intuitive installation. Built according to IEC 60914 Conference Systems and IEC 61603-7 Transmission Systems standards. |
| POWER: | 50 + 50 W RMS at 4-16 Ω |
| RESPONSE: | 40-18,000 Hz |
|
CONTROLS:
|
Mic.1: volume Aux: volume Monitor: volume Internal microphone loudspeaker: volume Amplifier monitor loudspeaker: volume Bass and treble control General volume Selector of number of microphones in use |
| INPUTS: | 4 groups of microphones, DIN 8 1 unbalanced mic., 6.3 mm jack 1 efx in, 6.3 mm jack 1 aux, RCA |
| OUTPUTS: | 1 balanced master, XLR (recording) 2 line out, RCA 1 efx out, 6.3 mm jack |
| POWER SUPPLY: | 230/115 V AC, 500 W |
| DIMENSIONS: | 483 x 87 x 400 mm depth. 2 U 19" rack |
| WEIGHT: | 12 kg |
| ACCESSORIES: | 1 x 13 m extension cable for microphone interconnection, male DIN 8 to female DIN 8. For other lengths PLEASE ENQUIRE 1 x 2 m audio cable XLR 2 x 1.5 m audio cable RCA to 6.3 mm mono jack 1 male DIN 8 terminal connector |
